Off Grid Solar Inverter
Off Grid Solar Inverter
SM Series(2.2-3.2kVA)
About Sumry 1billion Annual sales revenue 1000 personn...

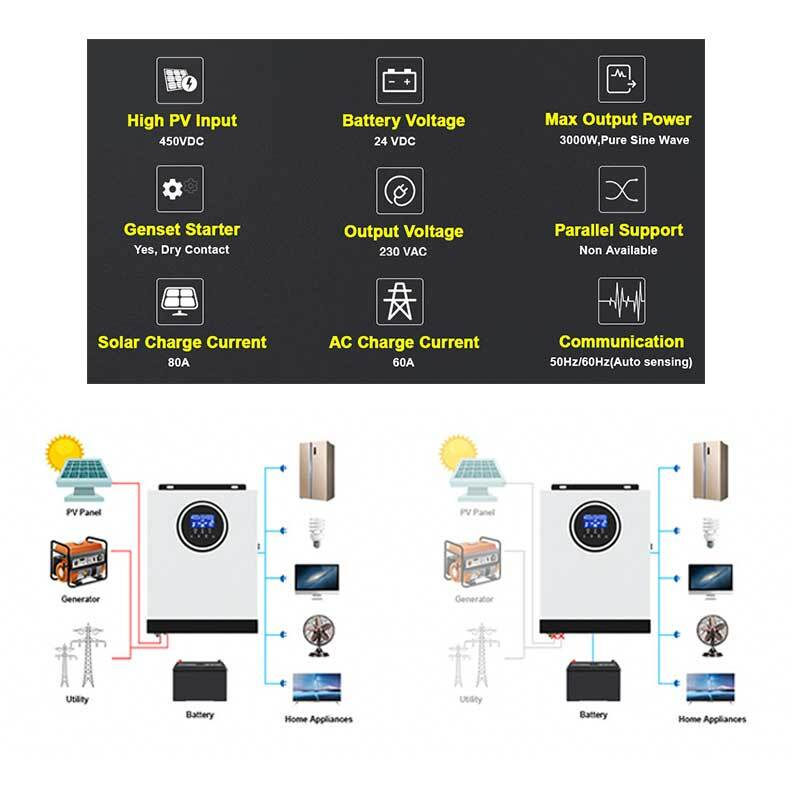

Features:

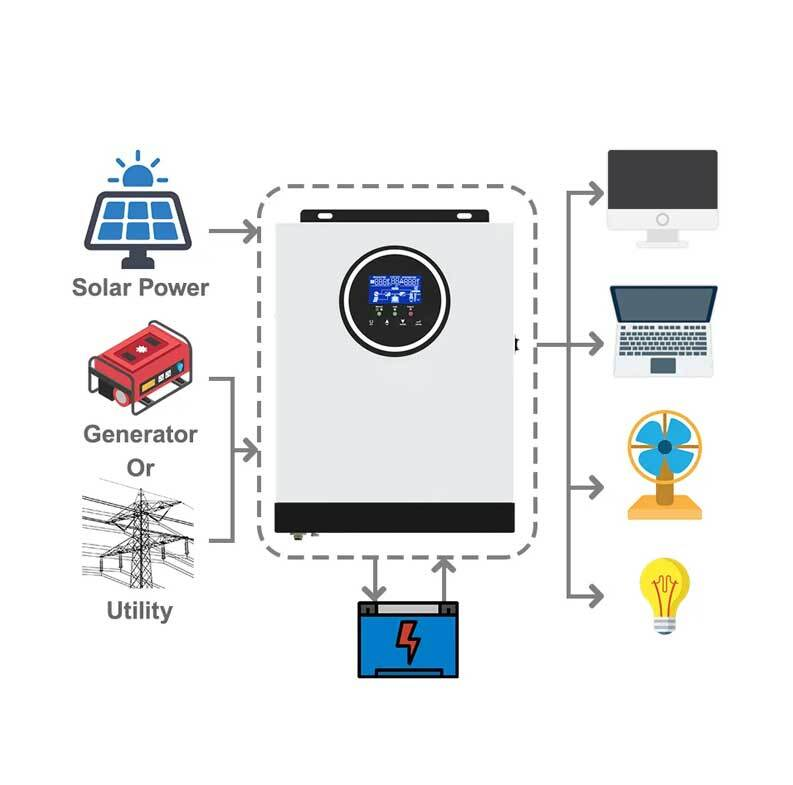

- Hybrid solar inverter
- Operation with battery connected
- Solar Power and AC Power available
- Solar Power and AC Power not available
- Compatible with lithium-ion battery
- High PV input voltage range(90-450VDC)
- Smart battery charge design to optimize battery life
- Overload,high temperature,inverter output short circuit protection
- Cold restart function
- Intelligent fan speed adjustment
About Sumry
1billion Annual sales revenue
1000 personnel
200+ Countries and regions
100 million+ inverter user
| MODEL | SM-2200H | SM-3200H |
| Rated Power | 2200VA/1800W | 3200VA/3000W |
| INPUT | ||
| Voltage | 230VAC | |
| Selectable Voltage Range | 170-280VAC (for personal computers) 90-280VAC (for home appliances) | |
| Frequency Range | 50Hz/60Hz (Auto sensing) | |
| OUTPUT | ||
| AC Voltage Regulation (Batt. Mode) | 230VAC±5% | |
| Surge power | 4400VA | 6400VA |
| Transfer Time | 10ms (for personal computers) 20ms (for home appliances) | |
| Wave form | Pure Sine Wave | |
| BATTERY & AC CHARGER | ||
| Battery Voltage | 12VDC | 24VDC |
| Floating Charge Voltage | 13.5VDC | 27VDC |
| Over charge Protection | 15.5VDC | 31VDC |
| Maximum charge current | 60A | |
| SOLAR CHARGER | ||
| MAX. PV Array Power | 2000W | 3000W |
| MPPT Range@ Operating Voltage | 90-450VDC | |
| Maximum PV Array Open Circuit Voltage | 450VDC | |
| Maximum Charging Current | 80A | |
| Maximum Efficiency | 98% | |
| PHYSICAL | ||
| Dimension. D*W*H(mm) | 423*348*172mm | |
| Net Weight (kgs) | 4.6kg | 4.8kg |
| Communication Interface | RS232(Standard) GPRS/WIFI(Optional) | |
| OPERATING ENVIRONMENT | ||
| Humidity | 5% to 95% Relative Humidity (Non-condensing) | |
| Operating Temperature | -10℃ to 55℃ | |
| Storage Temperature | -15℃ to 60℃ | |
