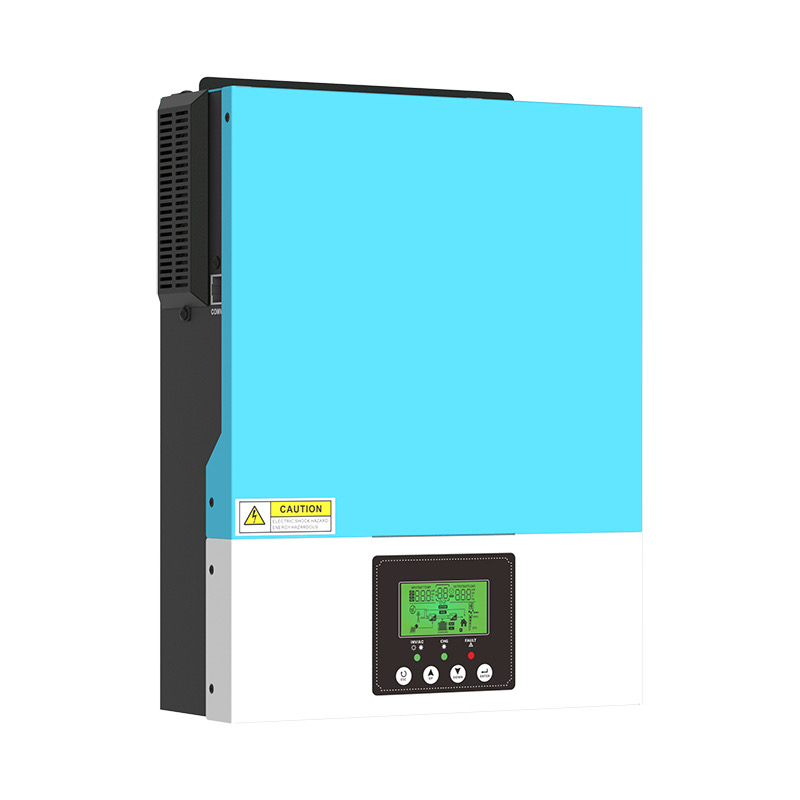

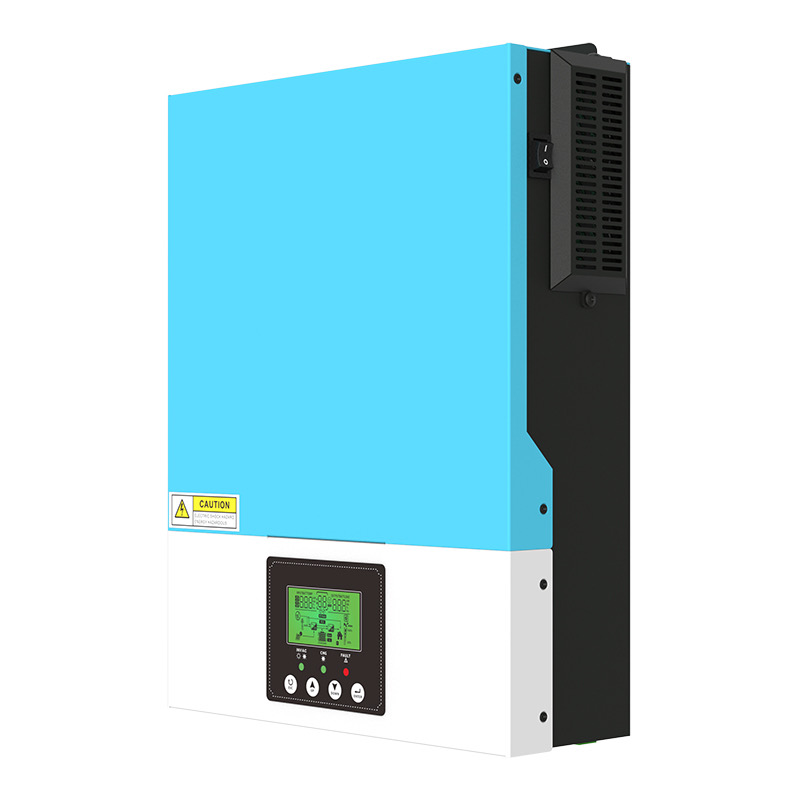

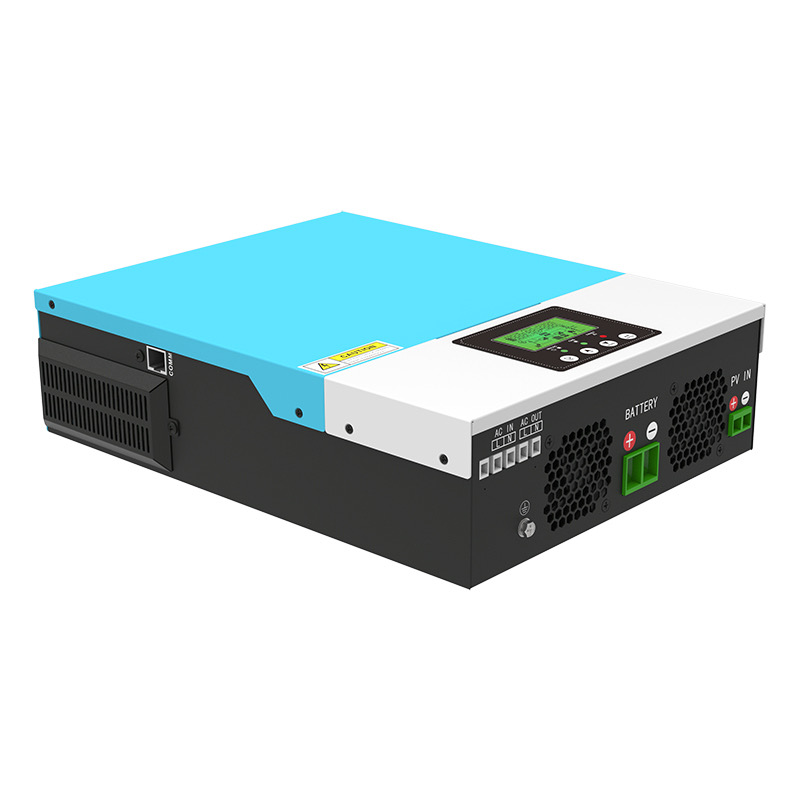

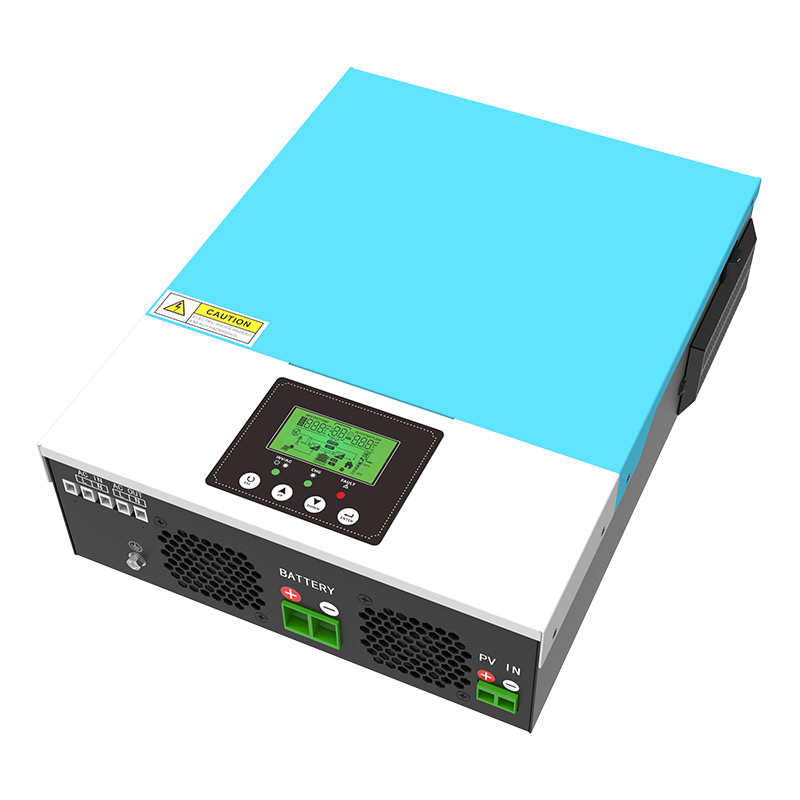

Off Grid Solar Inverter

SM Series (1.5-3kW)

123123

Features:

  • Pure sine wave solar inverter
  • WIFI&GPRS available for IOS and android
  • Buit-in 80A MPPT solar charger
  • Solar energy is provided directly to the load first
  • Buit-in anti-dusk kit for harsh environment(optional)
  • Compatibe with lithium-ion battery
  • High PV input voltage range(90-450VDC)
  • Smart battery charge design to optimize battery life
  • Can meet the rich custom needs of customers
Get Pricing/Info


123123

MODEL SM-1500-12 SM-2000-12 SM-2400-24 SM-3200-24
Rated Power 1500VA/1500W 2000VA/1600W 3000VA/2400W 3200VA/3000W
INPUT
Voltage 230VAC
Selectable Voltage Range 170-280VAC(for personal computers) 90-280VAC(for home appliances)
Frequency Range 50Hz/60Hz (Auto sensing)
OUTPUT
AC Voltage Regulation (Batt.Mode) 230VAC±5%
Surge power 3000VA 4000VA 4800VA 6400VA
Efficiency(Peak) PV to INV 97%
Efficiency(Peak) BAT to INV 94%
Transfer Time 10ms (for personal computers) 20ms (for home appliances)
Wave form Pure Sine Wave
BATTERY & AC CHARGER
Battery Voltage 12VDC 24VDC
Floating Charge Voltage 13.5VDC 27VDC
Overcharge Protection 16VDC 33VDC
Maximum charge current 60A
SOLAR CHARGER
MAX.PV Array Power 2000W 3000W
MPPT Range@ Operating Voltage 90-430VDC
Maximum PV Array Open Circuit Voltage 450VDC
Maximum Charging Current 80A
Maximum Efficiency 98%
PHYSICAL
Dimension.D*W*H(mm) 348*270*95
Net Weight (kg s) 4kg 5kg
Communication Interface RS232(Standard) GPRS/WIFI(Optional)
OPERATING ENVIRONMENT
Humidity 5% to 95% Relative Humidity(Non-condensing)
Operating Temperature 0℃ to 55℃
Storage Temperature -15℃ to 60℃
