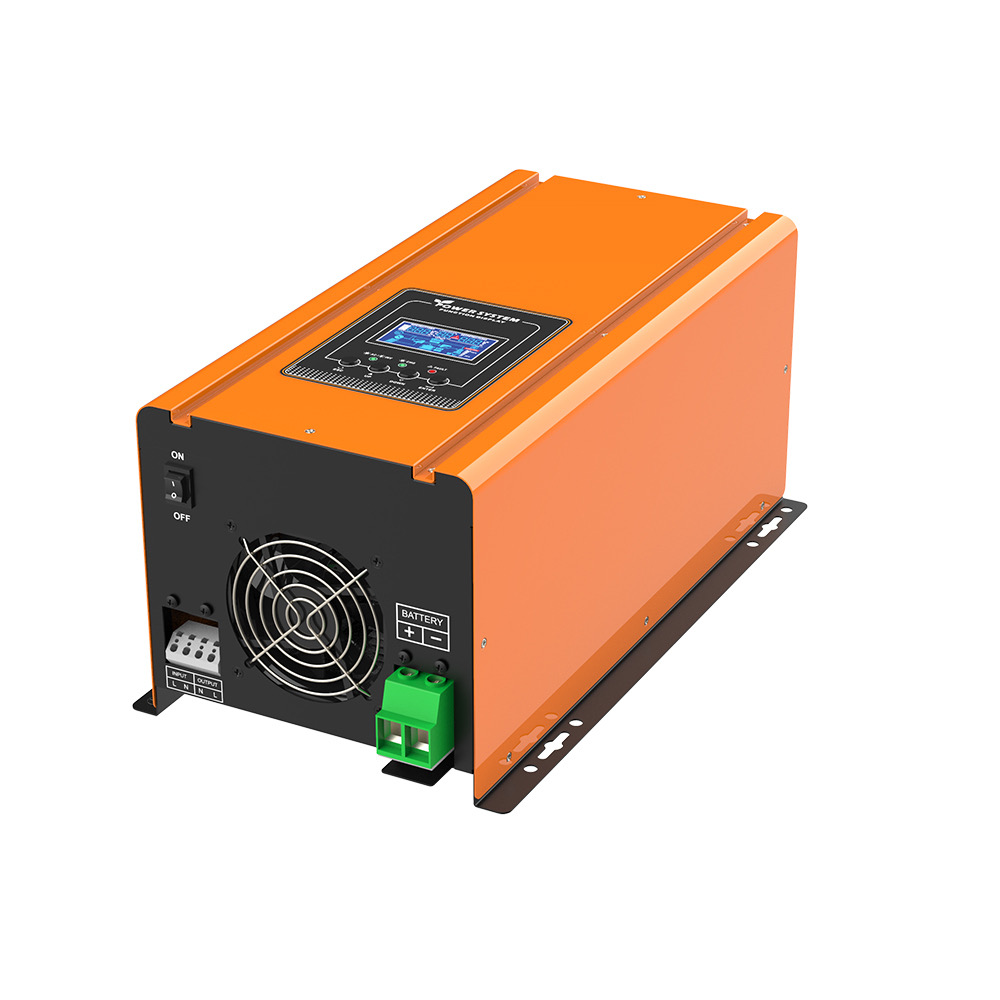

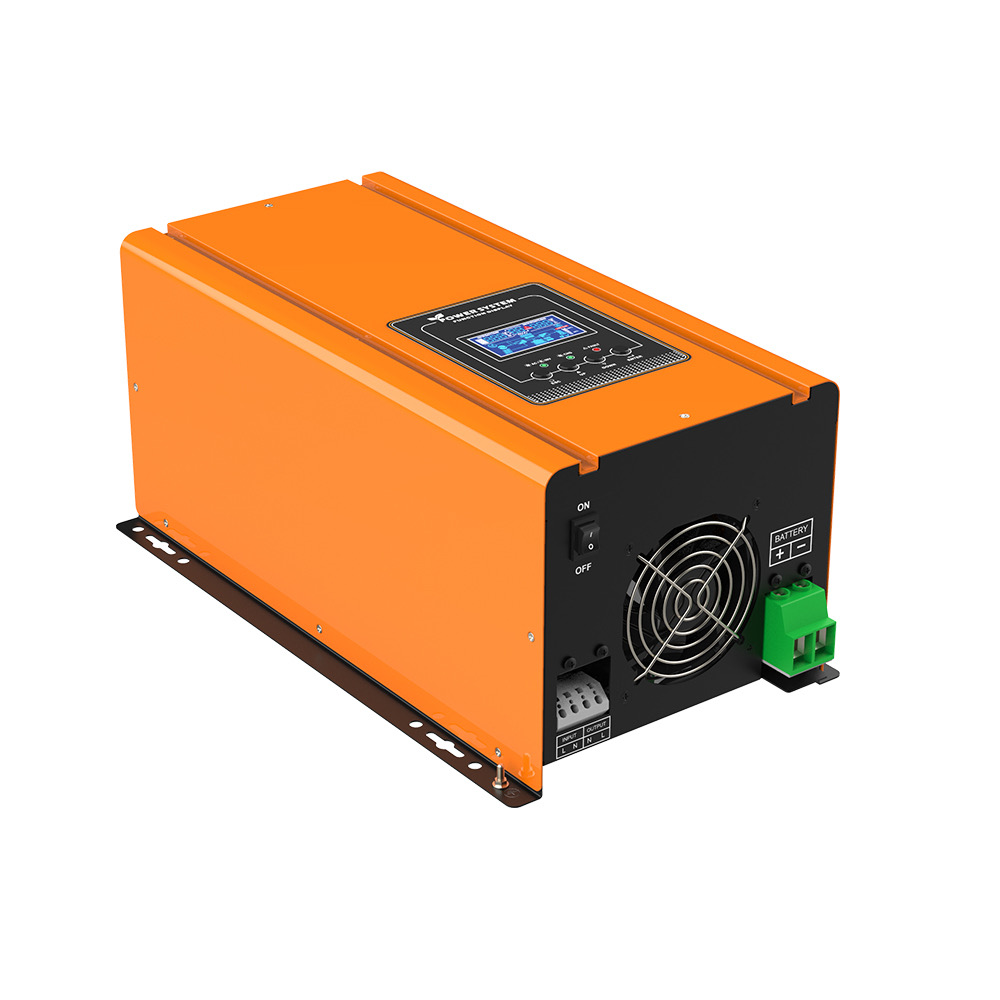

Low Frequency Power Inverter
Low Frequency Power Inverter
RP Series (1-3kW)
LCD display Overview Connection
Features:
- Pure sine wave inverter
- Output power factor 1
- Selectable high power charging current
- Selectable input voltage range for home appliances and personal computers
- Configurable AC/battery input priority via LCD setting
- Compatible with generator power
- Auto restart while AC is recovering
- Overload and short circuit protection
- Smart battery charger design for optimized battery performance
- Cold start function
- Color LCD display
- Supports the use lithium batteries
- Wave by wave phase detection，more stable and reliable

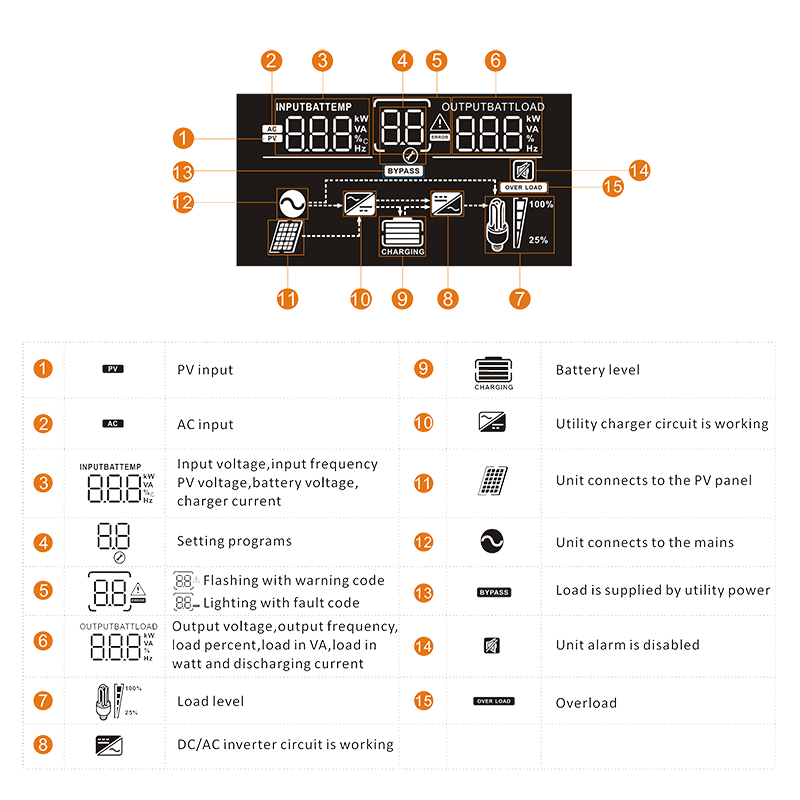

LCD display

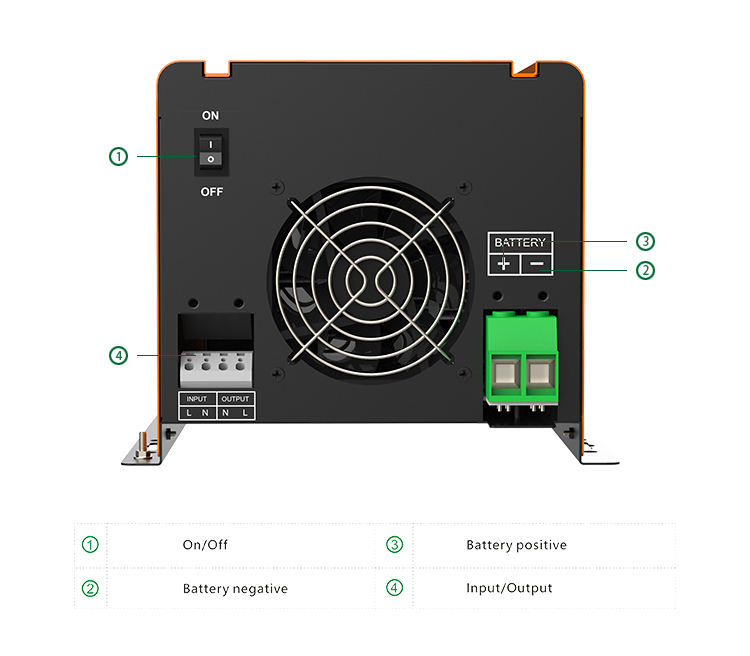

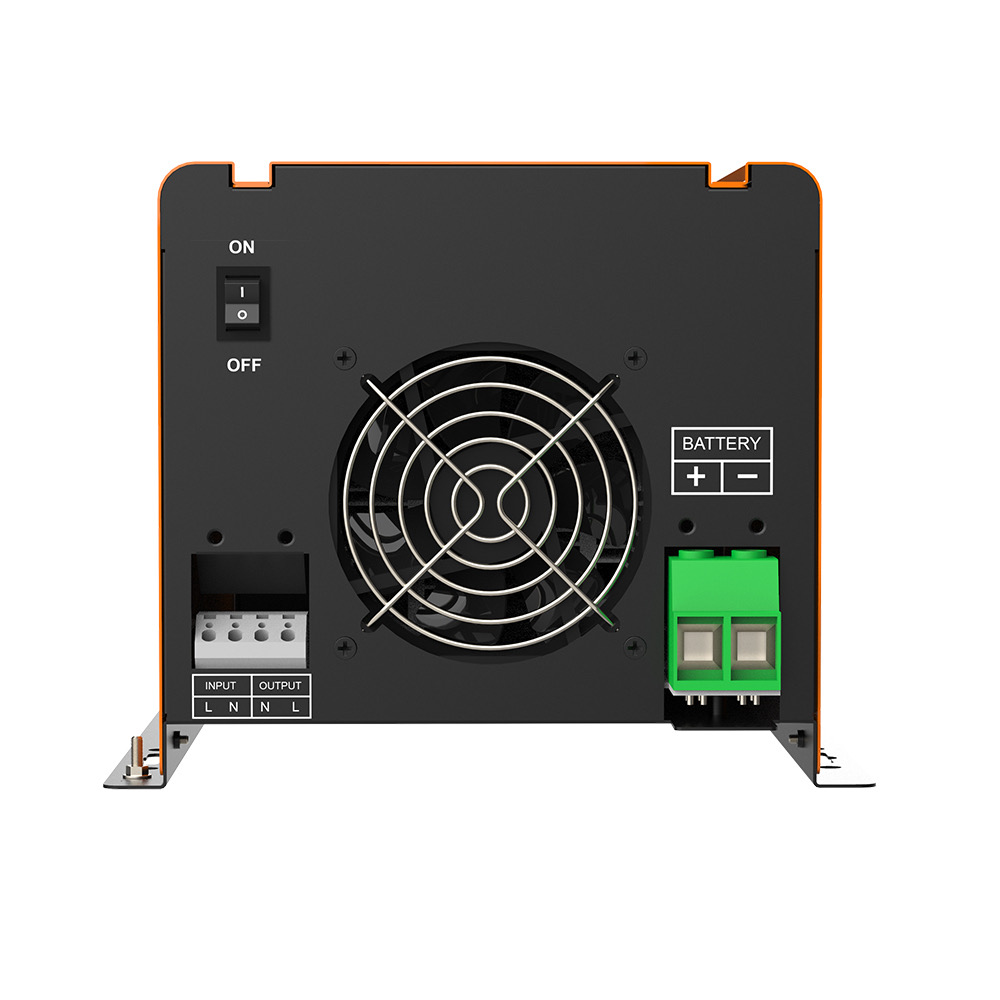

Overview

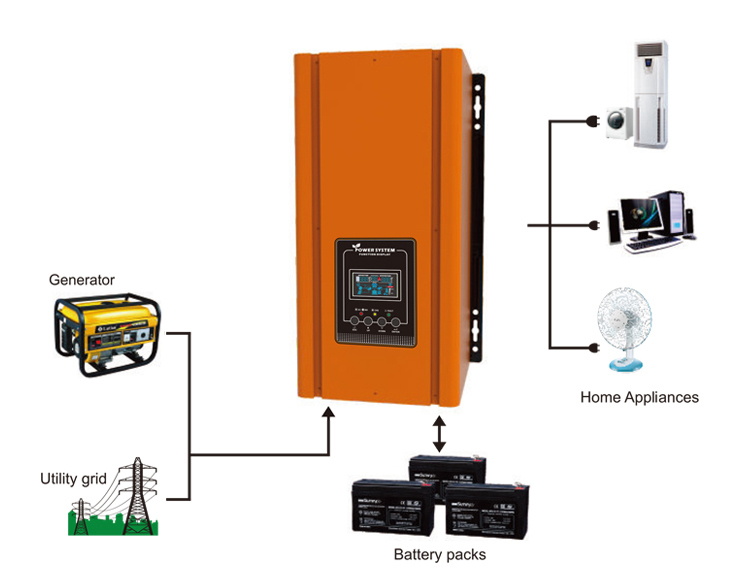

Connection
| MODEL | RP 1000 | RP 2000 | RP 3000 |
| Rated Power | 1000VA/1000W | 2000VA/2000W | 3000VA/3000W |
| INPUT | |||
| Voltage | 100/110/120VAC;220/230/240VAC | ||
| Selectable Voltage Range | Wide Range :75VAC~138VAC;155VAC~275VAC (for home appliances) Narrow Range :82VAC~138VAC ;165VAC~275VAC (for personal computer) | ||
| Frequency | 40-70Hz (50Hz/60Hz) | ||
| OUTPUT | |||
| AC Voltage Regulation (Batt Mode) | 100/110/120VAC (±5V)；220/230/240VAC (±10V) | ||
| Surge Power | 2000VA | 4000VA | 9000VA |
| Efficiency (Peak) | 88% | 91% | |
| Transfer Time | <20ms | <10ms | |
| Wave form | Pure sine wave | ||
| BATTERY | |||
| Battery Voltage | 12V | 24V | 12/24V/48 |
| Charge Current | 75A | 35A | 75/35A/25 |
| Fast Charge Voltage | 14.3VDC | 28.6VDC | 14.3/28.6/57.2VDC |
| Float Charge Voltage | 13.7VDC | 27.4VDC | 13.7/27.4/54.8VDC |
| Battery Low Voltage Alarm | 16.5VDC | 33.0VDC | 16.5/33.0/66.0VDC |
| Over Voltage Protect | 10.5VDC | 21.0VDC | 10.5/21.0/42.0VDC |
| Battery Low Voltage Shutdown | 10.0VDC | 20.0VDC | 10.0/20.0/40.0VDC |
| Protection | over charging，over temp，over battery voltage，over load，short-circuit | ||
| Operating Environment Temperature | 55℃ | ||
| Cooling | Intelligent Fan | ||
| Display | LCD | ||
| Specification Setting | By LCD or position machine：Charging current，battery type，input voltage，output frequency，wide and narrow of AC input voltage，power-saver model，AC priority or battery priority | ||
| PHYSICAL | |||
| Dimension，(D*W*H)mm | 390*222*178 | 500*258*190 | |
| Net Weight (kg) | 11.4 | 15 | 25.2 |
| ENVIROMENT | |||
| Humidity | 5~95% Relative humidity (No-condensing) | ||
| Operating Temperature | -10℃~50℃ | ||
| Storage Temperature | -10℃~60℃ | ||
