Off Grid Solar Inverter

MPS-V Series(3.2-5kW)

LCD display Connection

High efficiency pure sine wave inverter (PF=1)
Wide PV input range (120VDC-500VDC) 80A MPPT SCC；intelligent 3 stage 60A/80A AC charger
Surges to 2X continuous power for 5 seconds for motor loads
Intelligent functionality enables utility and solar input prioritization
Wide utility input range (90VAC ~280VAC) for unreliable grid even
In the most challenging environments
Field serviceable with replacement boards and spare parts
Monitor, troubleshoot or communication with USB/RS232
System configures quickly into compact，wall-mount-ed system
Working without batteries in sun day
WIFI/GPRS Monitoring function (optional)

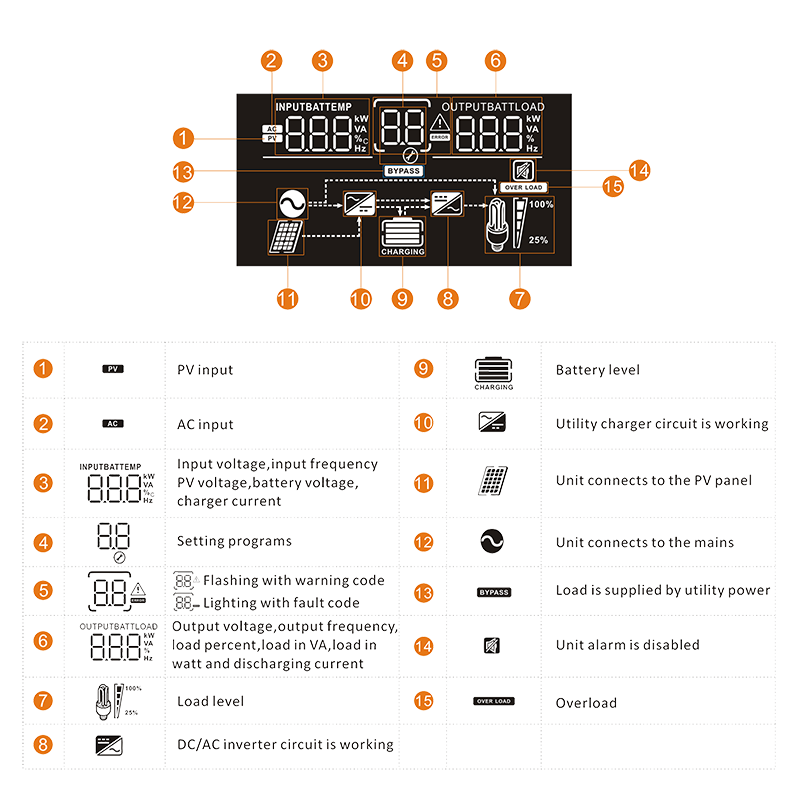

LCD display

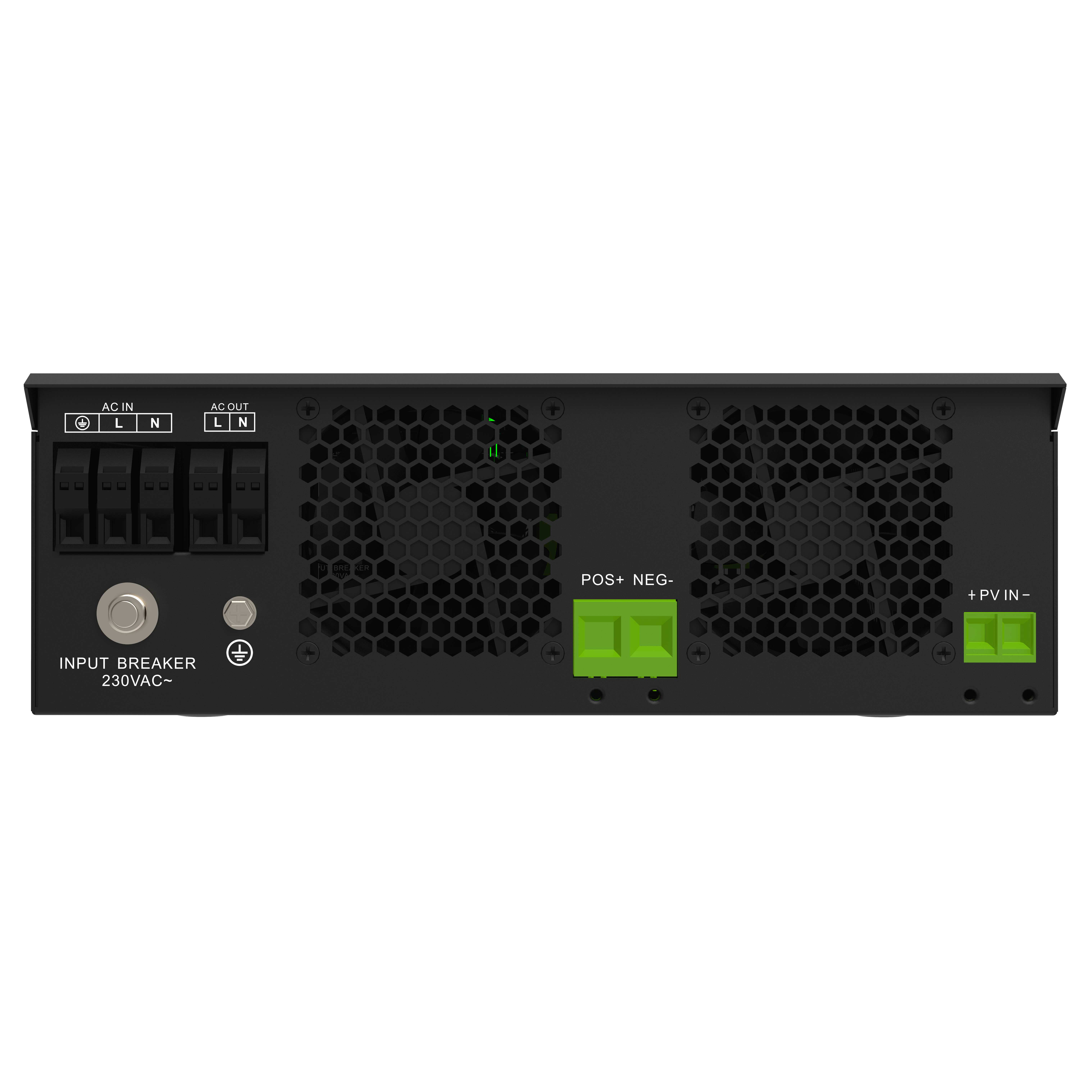

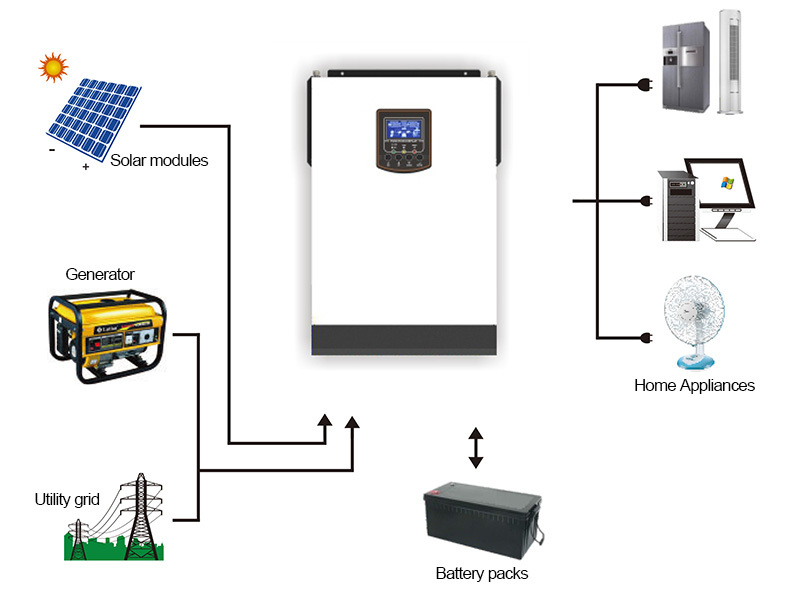

Connection

MODEL	MPS-V-3200-24	MPS-V-5000-48
Rated Power	3200VA/3200W	5000VA/5000W
INPUT
Voltage	230VAC
Selectable Voltage Range	170-280VAC (for personal computers) 90-280VAC (for home appliances)
Frequency Range	50Hz/60Hz (Auto sensing)
OUTPUT
AC Voltage Regulation (Batt. Mode)	230VAC±5%
Surge power	6400VA	10000VA
Efficiency (Peak)PV to INV	97%
Efficiency (Peak)BAT to INV	94%
Transfer Time	10ms (for personal computers) 20ms (for home appliances)
Wave form	Pure Sine Wave
BATTERY & AC CHARGER
Battery Voltage	24VDC	48VDC
Floating Charge Voltage	27VDC	54VDC
Overcharge Protection	33VDC	63VDC
Maximum charge current	80A	60A
SOLAR CHARGER
MAX.PV Array Power	4000W (5000W optional for 5KW model)
MPPT Range@ Operating Voltage	120-450VDC
Maximum PV Array open Circuit Voltage	500VDC
Maximum Charging Current	80A
Maximum Efficiency	98%
PHYSICAL
Dimension. DWH(mm)	440300100
Net Weight (kg)	11kg	12kg
Communication Interface	WIFI/GPRS (Optional)
OPERATING ENVIRONMENT
Humidity	5% to 95% Relative Humidity (Non-condensing)
Operating Temperature	0℃ to 5 ℃
Storage Temperature	-15℃ to 60℃
