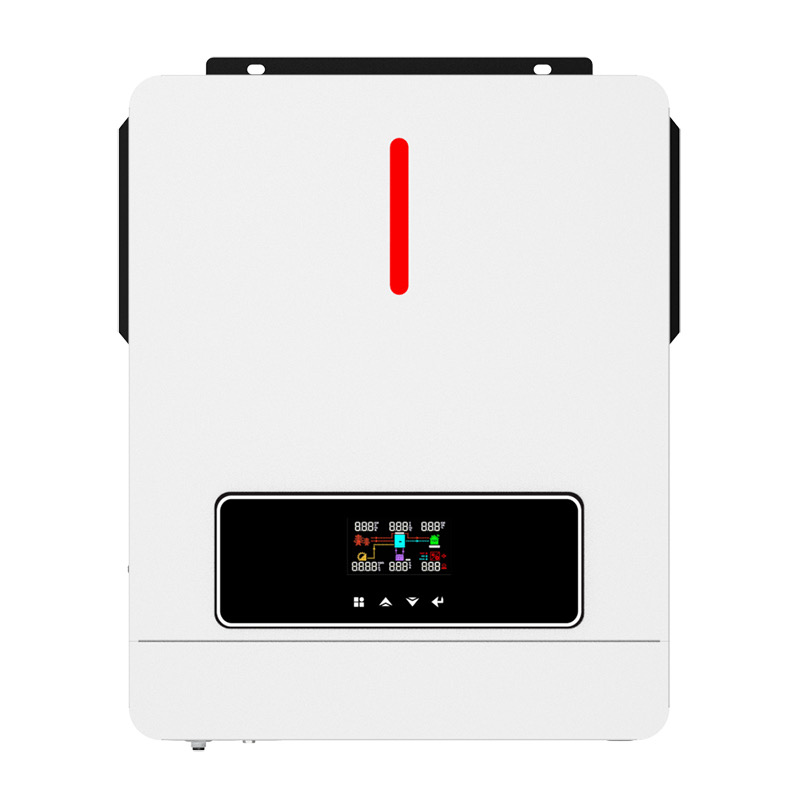

MPS-V MAX Series(7.2-10.2kW)
Features:
- Pure sine wave solar inverter（on/off Grid）
- Built-in 160A（for 7.2KW/8.2KW）/180A（for 10.2KW）MPPT solar charge
- Output power factor 1.0
- High PV input voltage range(90~500VDC)
- WIFI&GPRS available for IOS and Android
- Built-in anti-dusk kit for harsh environment
- Inverter running without battery
- Smart battery charge design to optimize battery life
- One-click restoration to factory Settings
- Dual output
- Built-in Lithium battery automatic activation
- Touch buttom
| MODEL | MPS-V MAX 7.2KW | MPS-V MAX 8.2KW | MPS-V MAX 10.2KW |
| Phase | 1-phase | ||
| Maximum PV Input Power | 8200W | 8200W | 10200W |
| Rated Output Power | 7200W/7200VA | 8200W/8200VA | 10200W/10200VA |
| Maximum Solar Charging Current | 160A | 160A | 180A |
| GRID-TIE OPERATION | |||
| PV Input(DC) | |||
| Nominal DC Voltage/ Maximum DC Voltage | 360VDC/500VDC | ||
| Start-up Voltage/ Initial Feeding Voltage | 90VDC/120VDC | ||
| MPPT Voltage Range | 90VDC~450VDC | ||
| Number of MPPT Trackers/Maximum Input Current | 1/27A | ||
| GRID OUTPUT(AC) | |||
| Nominal Output Voltage | 220/230/240VAC | ||
| Output Voltage Range | 195.5~253VAC | ||
| Nominal Output Current | 31.3A | 35.6A | 44.3A |
| Power Factor | >0.99 | ||
| Feed-in Grid Frequency Range | 49~51±1Hz | ||
| EFFICIENCY | |||
| Maximum Conversion Efficiency(DC/AC) | 98% | ||
| TWO LOAD OUTPUT POWER | |||
| Full Load | 7200W | 8200W | 10200W |
| Maximum Main Load | 7200W | 8200W | 10200W |
| Maximum Second Load(battery mode) | 2400W | 2733W | 3400W |
| Main Load Cut Off Voltage | 44VDC | 44VDC | 44VDC |
| Main Load Return Voltage | 48VDC | 48VDC | 48VDC |
| OFF-GRID OPERATION | |||
| AC INPUT | |||
| AC Start-up Voltage/ Auto Restart Voltage | 120-140VAC/180VAC | ||
| Acceptable Input Voltage Range | 90-280VAC or 170-280VAC | ||
| Maximum AC Input Current | 40A | 40A | 50A |
| Nominal operating frequency | 50/60Hz | ||
| Surge power | 14400W | 16400W | 20400W |
| PV INPUT(DC) | |||
| Maximum DC Voltage | 500VDC | ||
| MPPT Voltage Range | 90VDC~450VDC | ||
| Number of MPPT Trackers/Maximum Input Current | 1/27A | ||
| BATTERY MODE OUTPUT(AC) | |||
| Nominal Output Voltage | 48VDC | 48VDC | 48VDC |
| Output Waveform | Pure sine wave | ||
| Efficiency(DC to AC) | 94% | ||
| BATTERY & CHARGER | |||
| Nominal DC Voltage | 48VDC | 48VDC | 48VDC |
| Maximum Solar Charging Current | 160A | 160A | 180A |
| Maximum AC Charging Current | 140A | 140A | 160A |
